Why the F-22 nose cone is built from radar-transparent materials

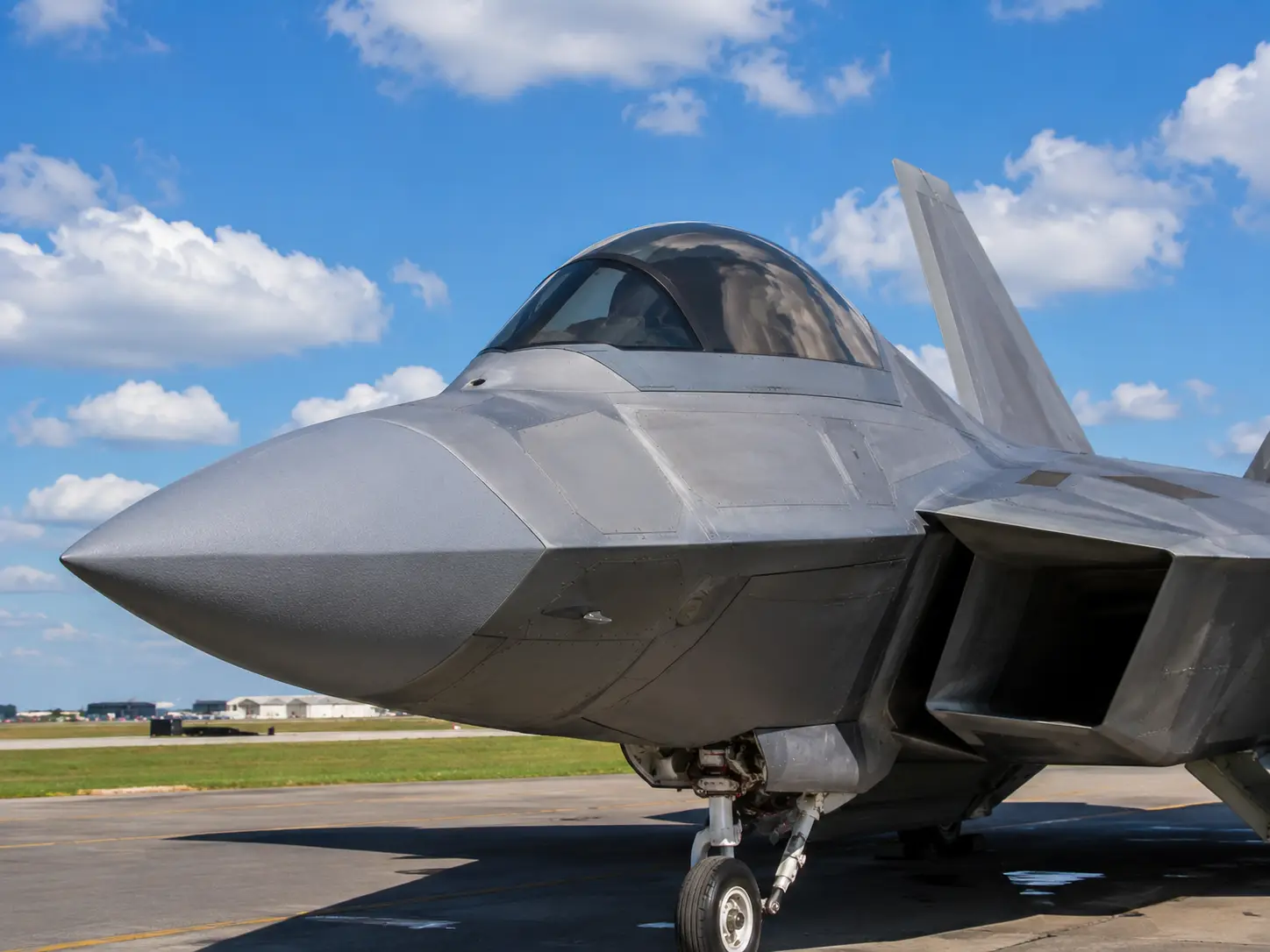

The F-22 nose cone houses the advanced AN/APG-77 AESA radar system, which is essential for target acquisition and tracking. It is constructed from specialized dielectric materials that are transparent to radio waves, allowing signals to pass through without any interference or loss. This robust design protects the internal sensors from extreme flight speeds and harsh environmental conditions while ensuring maximum radar efficiency.

Stealth fighters must maintain a minimal radar cross-section to avoid detection by enemy sensors. Standard metallic or conductive nose cones would reflect radar waves, making the aircraft highly visible to ground and airborne surveillance systems. By using specialized composite materials, the radome remains invisible to external radar while shielding the aircraft from detection.

The AN/APG-77 is a highly advanced active electronically scanned array system capable of multi-target engagement. High-frequency X-band signals must exit the nose cone cleanly to maintain high-resolution target tracking. Radar-transparent composites allow these signals to steer electronically at high speeds for pinpoint accuracy in combat.

The radome is engineered to act as a precisely tuned filter for specific radar operating frequencies. By minimizing signal distortion, it ensures that the data received by the pilot remains accurate and reliable during high-speed maneuvers. This precision allows the Raptor to maintain full combat awareness without compromising its low-observab

The nose cone utilizes sophisticated dielectric composites, such as aramid fibers or quartz, which do not reflect or absorb radar energy. These materials are carefully selected to balance high structural strength with near-perfect electromagnetic transparency. This complex engineering feat is vital for the Raptor's capability to detect threats before being detected itself
