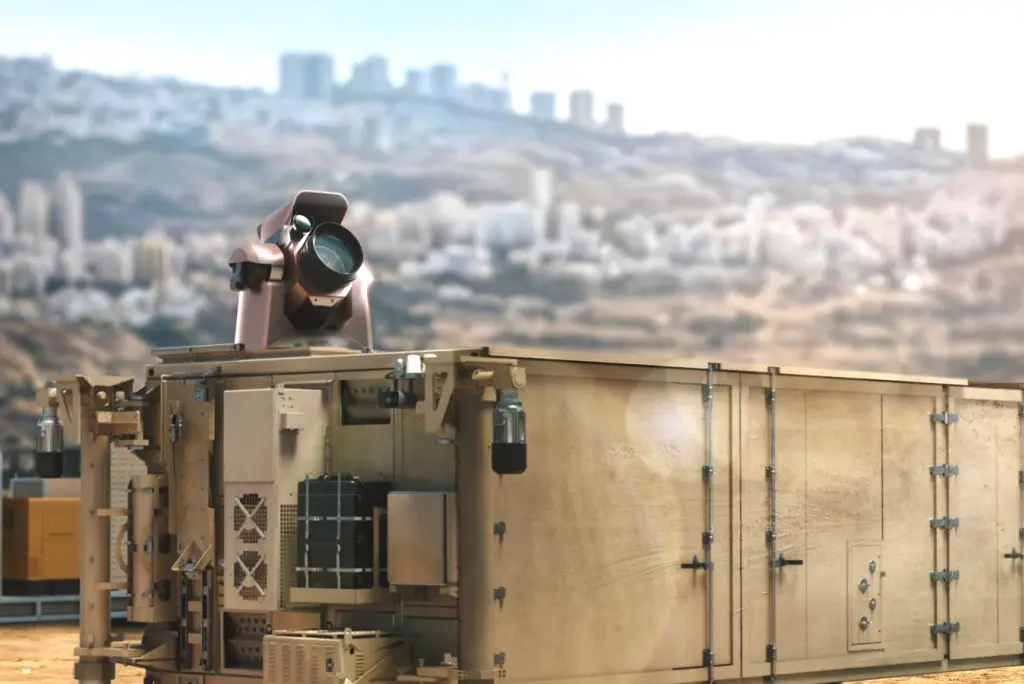

Iron Beam cooling tech: How it prevents the laser from overheating
Israel’s Iron Beam laser generates massive waste heat, so advanced cooling systems like liquid loops, microchannels, phase-change materials, and thermoelectric units keep the beam stable, prevent overheating, and allow continuous high-power firing in combat.
The Overheating Problem - 50 per cent Waste Heat Generation
High-power laser systems generate approximately 50 per cent of electrical input as waste heat requiring active cooling preventing thermal damage and component failure. A 100-kilowatt Iron Beam laser generates 100 kilowatts of waste heat simultaneously requiring removal at rates matching power generation. Without cooling, thermal energy accumulates within the laser module raising internal temperatures causing material expansion, optical distortion, and potential melting of critical components within seconds.
Thermal Effects on Beam Quality - Distortion and Aberration
Heat-induced thermal lensing creates optical aberrations distorting laser beams through refractive index changes within laser materials causing beam divergence and targeting errors. Temperature fluctuations as small as 0.1 degrees Celsius shift laser wavelengths by 0.1 nanometres requiring ultra-precise temperature stability for beam quality maintenance. Thermal birefringence alters polarisation characteristics degrading beam coherence reducing engagement effectiveness.
Liquid Cooling Loops - Primary Heat Removal Method
Iron Beam employs closed-loop liquid cooling systems where specialised coolant circulates through cooling blocks in direct contact with laser modules absorbing heat and transporting it to thermal exchangers. Liquid cooling provides superior heat dissipation compared to air-cooling with liquid heat capacity approximately four times higher than air enabling faster heat removal. Deionised water mixed with additives prevents corrosion and bacterial growth in continuous circulation systems.
Microchannel Cooling Technology - Millimetre-Precision Flow Control
Advanced microchannel cooling solutions route coolant through channels smaller than millimetre size targeting high-power zones with precision temperature control across laser surfaces. Lower thermal mass in microchannels reduces thermal resistance enabling faster heat transfer away from critical components. Adjustable flow distribution concentrates cooling where heat generation peaks preventing hot spots within laser assemblies.
Thermal Exchanger Systems
Thermal exchangers absorb heat from laser cooling loops transferring energy to environmental air or water sinks rejecting waste heat outside the laser weapon system. Plate-fin and tube-fin exchangers provide efficient heat transfer through extended surface areas maximising cooling rates. Some systems employ dual-loop configurations where primary loops cool lasers and secondary loops conduct thermal energy to remote exchangers.
Phase-Change Materials
Phase-change materials absorb heat during laser firing by melting from solid state storing thermal energy in latent heat capacity then freezing during engagement pauses releasing stored energy to cooling systems. Phase-change materials provide 1 to 2 orders of magnitude higher thermal storage compared to traditional sensible heat cooling providing resilience if primary cooling systems fail. These materials buffer peak heat transients enabling sustained rapid-fire capability during extended engagements.
Temperature Control Precision - 0.1-Degree Stability Requirement
Closed-loop temperature control systems continuously monitor thermal sensors adjusting coolant flow and temperature maintaining laser operating points within 0.1 degrees Celsius precision. Proportional-integral-derivative control algorithms respond to temperature deviations in real-time preventing thermal oscillations that degrade beam stability. Intelligent algorithms balance cooling rate against pump energy minimising power consumption whilst maintaining thermal stability.
Thermoelectric Cooling Systems - Precise Temperature Control
Solid-state Peltier coolers provide bidirectional heating and cooling enabling precise thermal management without moving parts reducing maintenance requirements and operational noise. Thermoelectric systems can cool below ambient temperature and actively move heat away from laser optics. Higher coefficient-of-performance compressor-based refrigeration systems require approximately 1 kilowatt electrical input cooling 3 kilowatts of waste heat.
Continuous Operation Capability
Advanced cooling systems enable Iron Beam to engage multiple targets sequentially without thermal shutdown maintaining continuous engagement capability throughout rocket barrages. Dual-channel designs separate cooling paths for different laser components optimising thermal management across the entire system. Built-in alarm functions alert operators when temperatures approach damage thresholds enabling preventive engagement pauses.
Future Cooling Technologies
Next-generation laser weapons employ hypersonic coolant technologies and composite materials enabling kilowatt-per-litre heat dissipation rates supporting future megawatt-class directed-energy weapons. Advanced materials with higher thermal conductivity like diamond and boron nitride composites reduce thermal resistance enabling compact cooling solutions. Future systems target zero-maintenance cooling achieving decade-long operational life without fluid replenishment.
)
)
)
)
)
