'Eyes before weapons': How the S-400's radar network works

The S-400 Triumf relies on an intricate web of advanced radars to see threats long before firing a single missile. This multi-layered sensor network creates an impenetrable 600-kilometre surveillance bubble that tracks aircraft, drones, and ballistic missiles.

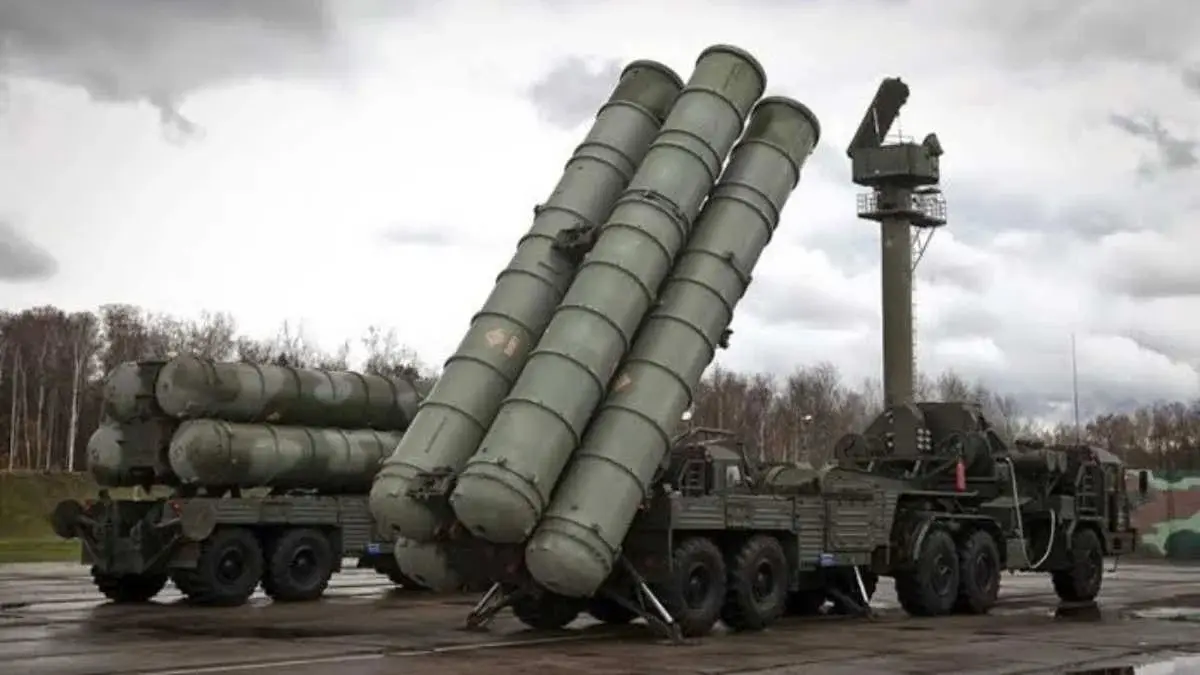

At the heart of the system is the massive 91N6E panoramic detection radar, widely known by its NATO designation ‘Big Bird’. According to Russian military specifications, this powerful sensor continuously scans the skies and simultaneously tracks up to 300 distinct aerial targets.

Raw data from the primary radar is instantly transmitted to the highly secure 55K6E mobile command post. Acting as the network's digital brain, it rapidly processes the telemetry, prioritises the most dangerous threats, and assigns them to specific missile batteries.

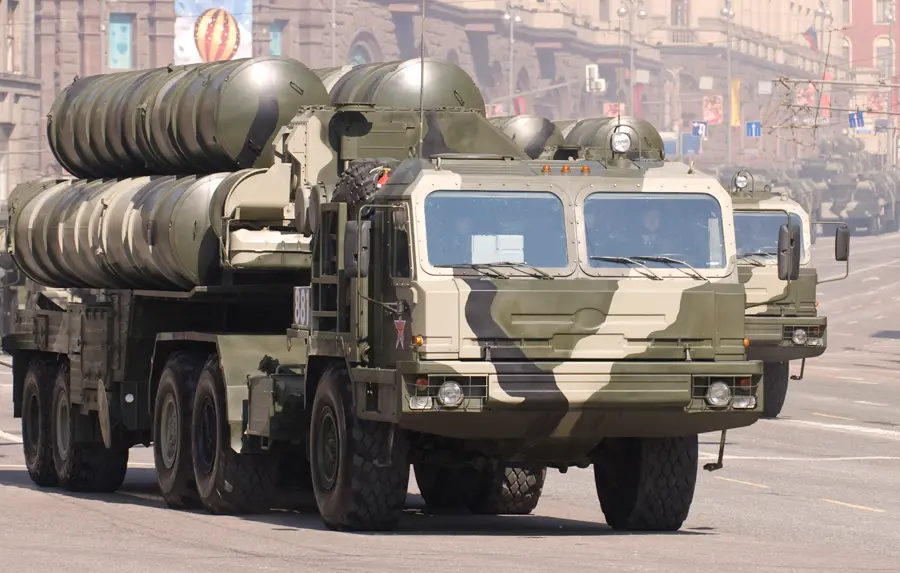

To prevent threats from sneaking underneath the primary surveillance umbrella, the system often deploys the 96L6E all-altitude radar. This specialised sensor is specifically engineered to detect terrain-hugging cruise missiles and low-flying drones up to 300 kilometres away.

When facing advanced fifth-generation fighters, the S-400 integrates the highly complex Nebo-M multi-band radar network. By simultaneously broadcasting across VHF, L-band, and X-band frequencies, it severely degrades modern radar-absorbent coatings to successfully expose stealth aircraft.

Once a threat is prioritised, the 92N6E ‘Grave Stone’ multi-function engagement radar officially takes over the kill chain. Operating in the high-resolution X-band, it provides the ultra-precise terminal targeting data required to guide interceptor missiles directly into their targets.

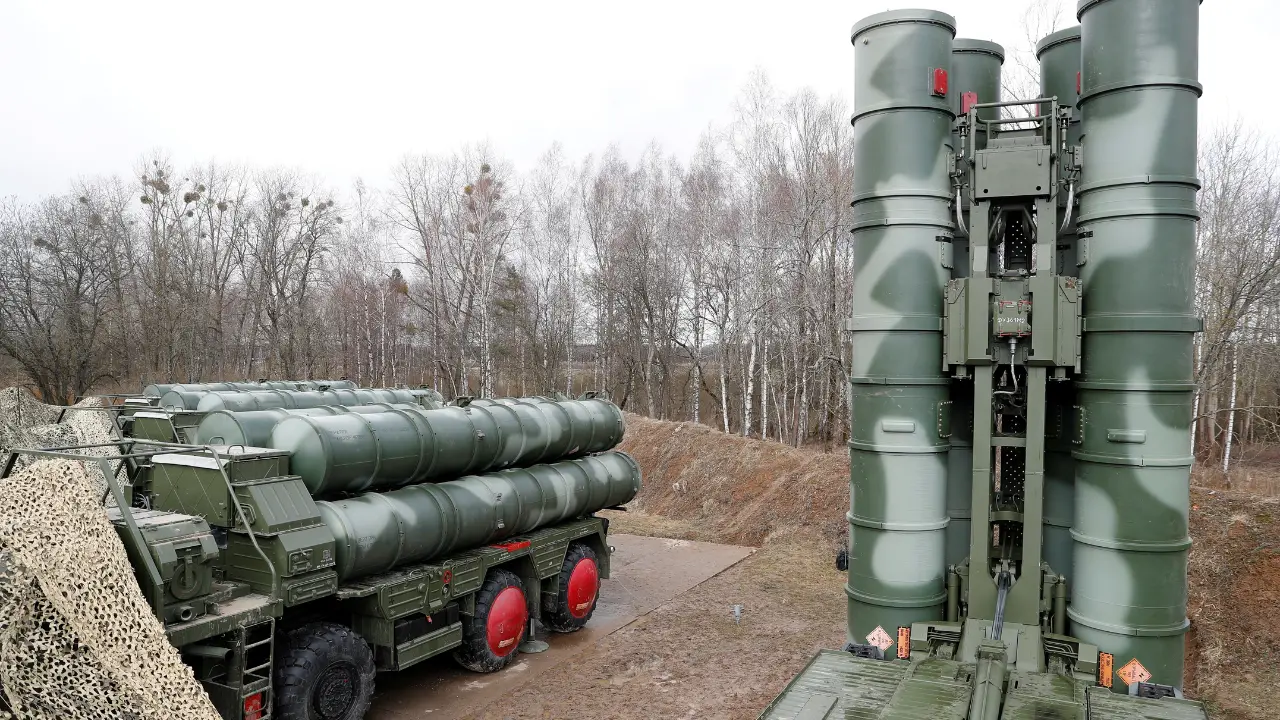

This seamlessly integrated web of sensors allows the S-400 to execute massive, highly coordinated counter-attacks in heavily jammed environments. Working perfectly in unison, the radar network can simultaneously lock onto 36 different targets and precisely guide 72 missiles to intercept them.
