7 aerodynamic techniques that help Russia's Su-57 fighter jet to out-turn its rivals
Su-57 out-turns rivals using canard pitch control, thrust-vectoring engines, low wing loading, delta-canard planform, leading-edge extensions, relaxed stability fly-by-wire design, integrated control surfaces. Configuration enables 90-degree angle-of-attack manoeuvres.
Canard Configuration - Pitch Control Enhancement
Su-57 features canard configuration with movable forewing providing independent pitch control. Canard surfaces generate lift assisting main wing during turning manoeuvres. Forward wing position optimises aerodynamic moment enabling rapid pitch control response. Configuration enables extreme angle-of-attack manoeuvres exceeding 90 degrees.
Thrust-Vectoring Engines - Directional Flight Control
Su-57 engines feature 3D thrust vectoring enabling controlled flight at extreme attitudes. Nozzle deflection up to 20 degrees provides independent pitch and yaw control. Vectoring enables knife-edge manoeuvres and rapid attitude changes. Technology provides agility advantages exceeding conventional fighter capabilities.

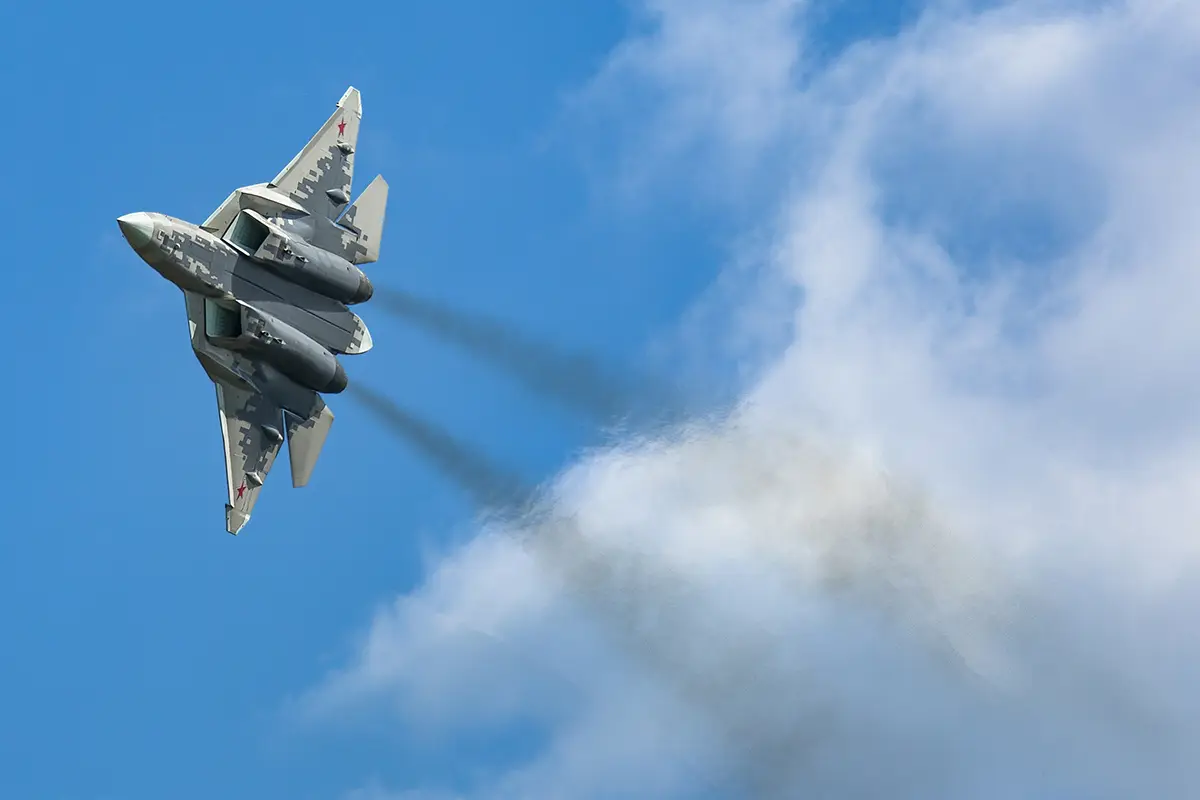

Low Wing Loading - Reduced Turn Radius
Su-57 achieves low wing loading approximately 280-300 kilograms per square metre. Lightweight construction through composites reduces mass enabling tighter turn radii. Lower wing loading enables sustained turn rates exceeding rival fighters. Configuration prioritises manoeuvrability at supersonic and subsonic speeds.
Delta-Canard Planform - Lift Distribution Optimisation
Delta-canard planform optimises lift distribution across entire flight envelope. Integrated wing-body design generates lift efficiently during turning manoeuvres. Planform configuration reduces trim drag enabling sustained high-load manoeuvrability. Design reflects aerodynamic optimisation for air combat performance.
Leading-Edge Extensions - Vortex Flow Generation
Leading-edge extensions generate controlled vortex flows during high-angle-of-attack manoeuvres. Vortex flow provides additional lift during extreme turning attitudes. Extensions prevent flow separation enabling sustained agility. Design technique proven effective across Sukhoi fighter family aircraft.
Relaxed Stability Design - Fly-By-Wire Agility
Su-57 employs relaxed stability configuration with fly-by-wire control systems. Intentionally unstable airframe design enables rapid attitude changes. Computer control systems manage unstable characteristics automatically. Configuration provides inherent agility advantage during close-range turning engagements.
Advanced Control Surfaces - Integrated Manoeuvrability
Su-57 integrates multiple control surfaces including canards, flaperons, and vectored thrust. Coordinated surface deflection optimises aerodynamic efficiency during manoeuvres. Advanced flight control algorithms manage surface coordination automatically. Integration enables superior turning performance compared to conventional control systems.
)
)
)
)
)
